The goal of this project is to support safe operations of unmanned aerial vehicles (UAVs) for urban mobility. UAVs operations present hazards to other airspace users and people and property on the ground, and monitoring, analysis, and control schemas need to be developed to ensure that the risks attributed to these hazards are managed to acceptable levels. We are working in the design of algorithms and corresponding computational architectures that are directed to minimize risk in flight (i.e., maximize safety under the given operating conditions), while also performing degradation monitoring to support system-level prognostics and track UAV performance during a mission.

Path planning algorithms that perform risk analysis conducted on projected UAV flight paths enable their safe operations. However, most approaches ignore the fact that the vehicle’s operating conditions can change during flight, and this makes the flight unsafe. Online monitoring of the UAV enables system‐level prognostics that combine the effects of multiple degrading components to determine how system functionality and performance are affected over the flight trajectory.  Taking into account the degrading state of the UAV and the changes caused by environmental parameters, we propose a path planning approach to compute the mission trajectory using an online risk analysis methodology.  The goal of the proposed approach is to adjust mission trajectory as necessary to reduce risks and maintain overall system safety under current and predicted environmental conditions.

Selected Publications

M. Quiñones-Grueiro, T. Darrah, G. Biswas, and C. Kulkarni “A Decision-Making Framework for Safe Operations of Unmanned Aerial Vehicles in Urban Environments”,  PHM Society Conference, 2020 (preprint).

Darrah, T., Kulkarni, C., Biswas, G. (2020). The Effects of Component Degradation on System-Level Prognostics for the Electric Powertrain System of UAVs. AIAA Scitech Forum.

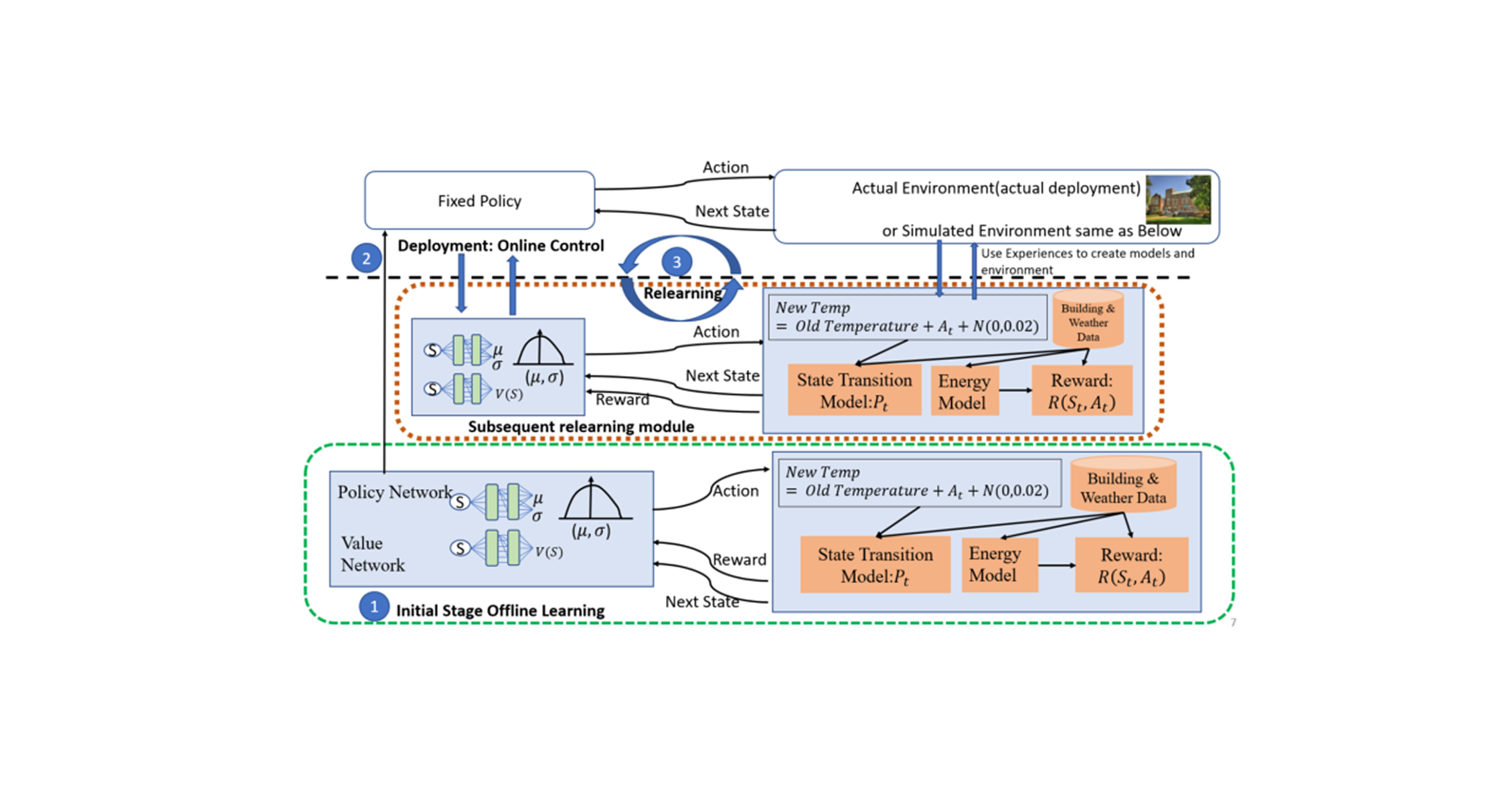

We demonstrate the relearning for continuous adaptation approach on a data-driven simulated model of a real HVAC system on our university campus. Since the data-driven simulated system needs to be updated with time, we also implement a relearning schedule where the simulated system is updated based on either of the periodic or trigger-based updates. We employ Deep LSTMs to model the heating energy, cooling energy, valve behavior, etc for the simulated setup. These models are trained on historical data from the real HVAC system. To develop the controllers, we are currently using the PPO algorithm which appears to be the State of the Art in solving benchmark RL tasks. PPO is a form of Policy gradient algorithm where we create a deep Policy Network which is the controller and a deep Value Network which evaluates the controller’s actions. These are trained using batches of experiences generated by the Policy Network and the simulated Non-Stationary System. The policy gradient algorithm is used to update the policy network at every training/update step. The reward signal is used to decide the quality of actions taken by the controller in the batches of experiences. For the HVAC, the reward signal incentivizes energy savings and comfort when it is controlled by supervisory actions from the RL controller.

Thus our approach can be termed as a “Data Drive Deep Reinforcement Learning Approach” where we use deep neural networks to learn features and subsequently patterns in the HVAC behavior as well as create controller networks for optimizing energy and comfort.

Heating Ventilation and Air Conditioning systems (HVACs) are used to control temperature and humidity inside buildings. They use cooling towers at one end to expel excess heat from the refrigerant into the atmosphere. The heat is expelled through evaporative cooling. The rate of cooling depends on the cooling tower surface area, humidity, temperature, and speed of water and air.

An optimal controller will set fan speeds and output water temperature set-points such that they are physically possible, save energy. It will also try to maintain occupant comfort, making this a multi-objective optimization problem.

We use Reinforcement Learning to train controllers that can learn and operate across changing weather conditions while saving energy. The code and data for this system can be found here.

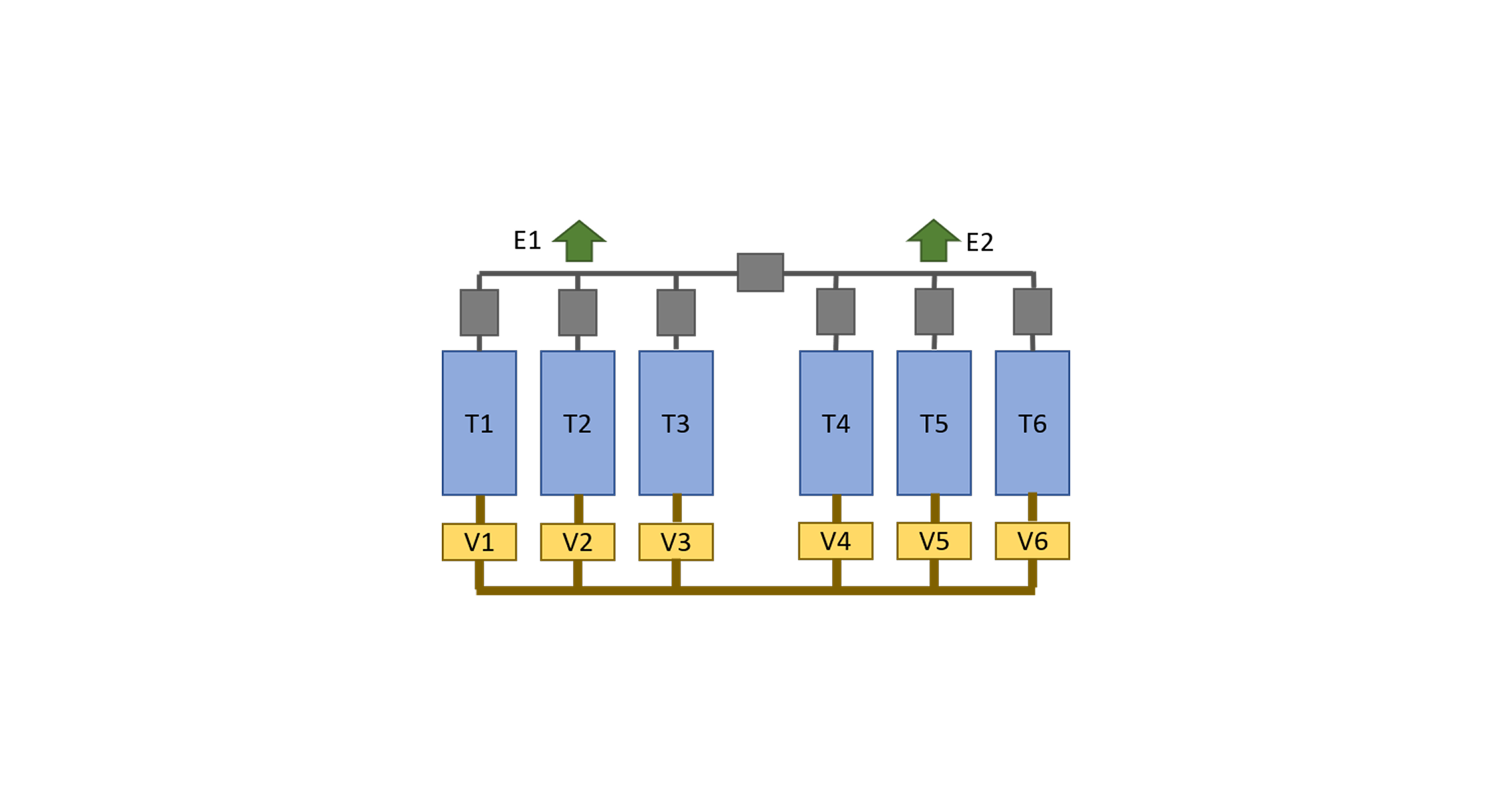

This is a simplified model of a fuel transfer system in an aircraft. There are 6 fuel tanks. Each tank is connected to a shared conduit via valves (V*). Once the valves are open, fuel can flow between tanks under gravity. The tanks are also connected to engines via pumps. Pumps drain fuel from the tanks under a prescribed schedule. The tanks are drained innermost first.

Faults in the systems can be changes in engine fuel demands, pump capacities, valve resistances etc. Faults can be gradual or abrupt.

We frame this as a reinforcement learning problem. This requires formulation of a reward function, data-driven models, and appropriate choice of algorithm that can adapt fast to faults.

The code for this system can be found here.

Selected Publications

I. Ahmed, H. Khorasgani, and G. Biswas, “Comparison of Model Predictive and Reinforcement Learning Methods for Fault Tolerant Control,” IFAC-PapersOnLine, vol. 51, no. 24, pp. 233–240, 2018.

I. Ahmed, M. Quiñones-Grueiro, and G. Biswas, “Fault-Tolerant Control of Degrading Systems with On-Policy Reinforcement Learning,”  IFAC-PapersOnLine, 2020.

I. Ahmed, M. Quiñones-Grueiro, and G. Biswas, “Complementary Meta-Reinforcement Learning for Fault-Adaptive Control,”  PHM Society Conference, 2020.

Navy Combatant Craft Health Management System

This is a multi-year STTR project in collaboration with Qualtech Systems, Inc, to develop an advanced health management system for Navy patrol boats. System health monitoring and management helps improve mission readiness and success. In long missions, or, in missions performed in harsh environments, Health Management Systems (HMS) may spell the difference between successful mission completion and failure. Health monitoring includes diagnosis and prognosis to assess a system’s health, and how it may change as future missions are conducted. Diagnosis is an assessment about the current and past health of a system based on observed symptoms, sensor data and built-in-tests, and prognosis is an assessment of precursor events or degradations that may affect the system health over a specified time interval. Such degradation assessment may drive intelligent maintenance, or, be used during operations to manage health and defer or prevent failure during a mission. Thus, a HMS is the key to condition-based maintenance (CBM) and critical for improving safety, planning missions, scheduling maintenance, and reducing maintenance costs and down time. The computational architecture is shown below in figure 1.
